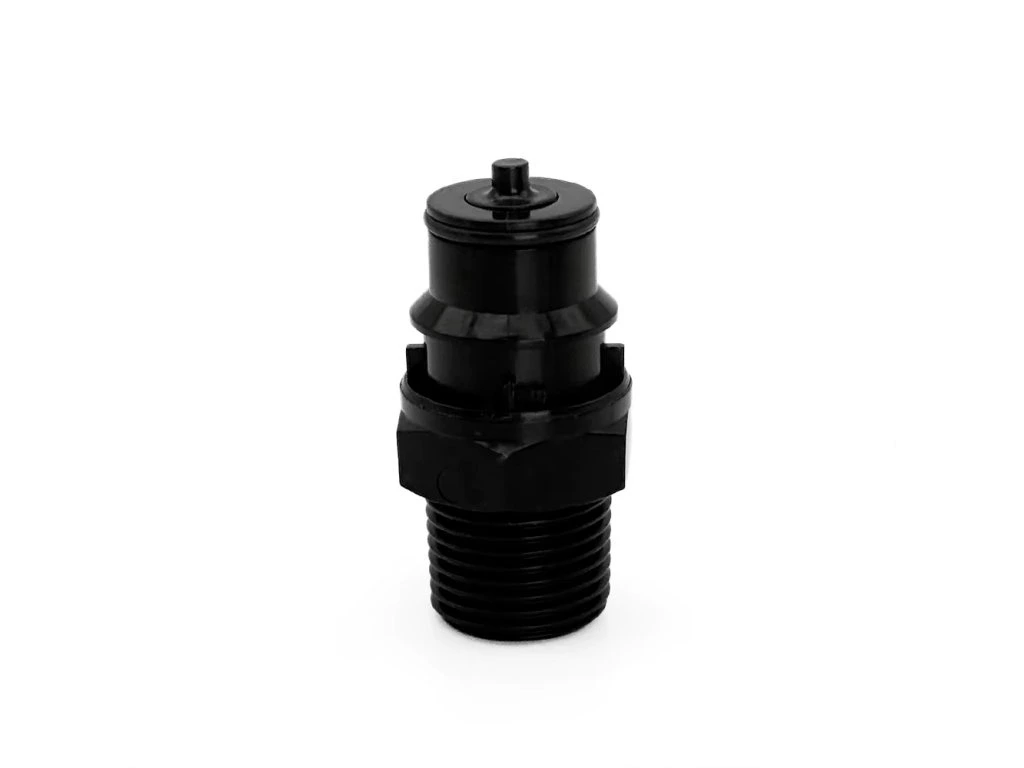

JoinTech Male Connector x 1/2 Inch BSPT Male
Code: KL41096Related products
Product detailed description
JoinTech Male Quick Disconnect x 1/2" BSPT with auto shut-off valve for safe hose connection without liquid loss.
- The connector features an integrated valve that remains closed until connected to a compatible counterpart. When disconnected, it automatically shuts off to prevent any fluid leakage.
- Ideal for use in glycol cooling systems, pumps, and beverage dispensing setups where quick and clean disconnection is required.
Compatibility
- JoinTech Female Connector with 13 mm barb (e.g. KL41102)
Key features
- automatic shut-off when disconnected
- tool-free quick connection
- suitable for liquids and glycol
- reliable, leak-free connection
Technical specifications
- type: JoinTech male quick disconnect
- connection: 1/2" BSPT male thread
- auto shut-off valve
- operating pressure: up to approx. 4 bar (60 PSI)
- temperature range: -40 °C to +138 °C
- body material: high-strength, chemically resistant polyketone
- spring: 316 stainless steel
- seal: EPDM O-ring
- flow path: 3/8"
Additional parameters
| Category: | Various and Accessories |
|---|---|
| Weight: | 0.015 kg |
| EAN: | 9388866641096 |
| Connection 1: | Thread (Male) 1/2 |
| Quick Fittings Type (QF): | External Thread (M) |
