BrewZilla Steam Condenser Set - 2 Inch Tri Clover

Product detailed description

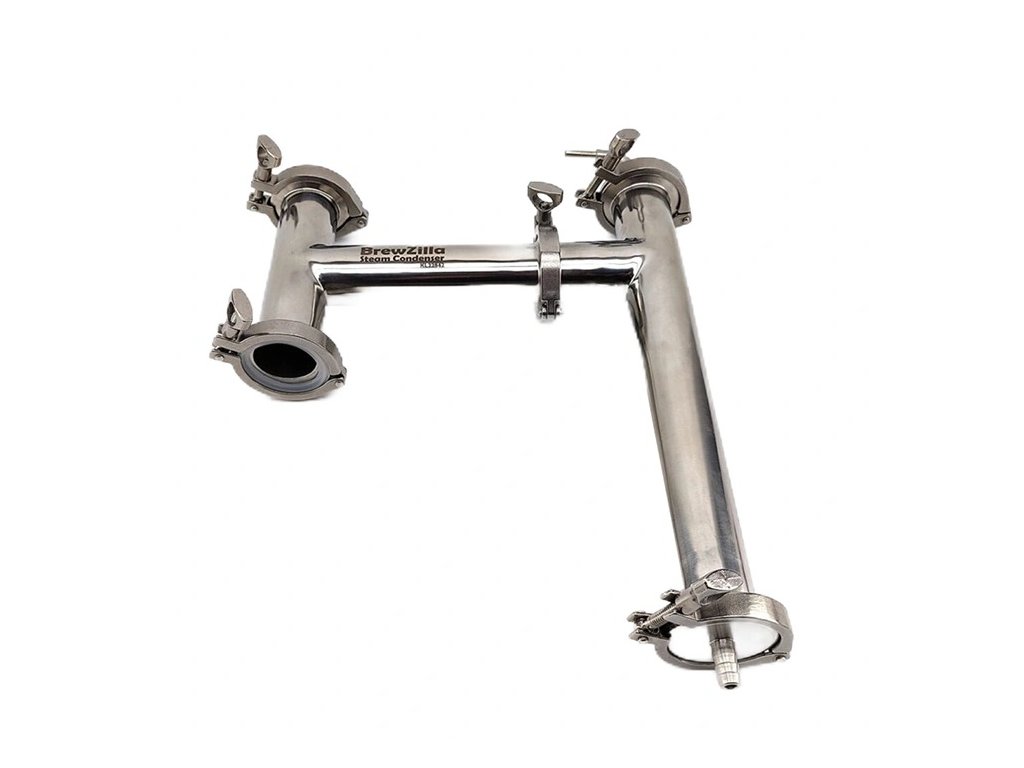

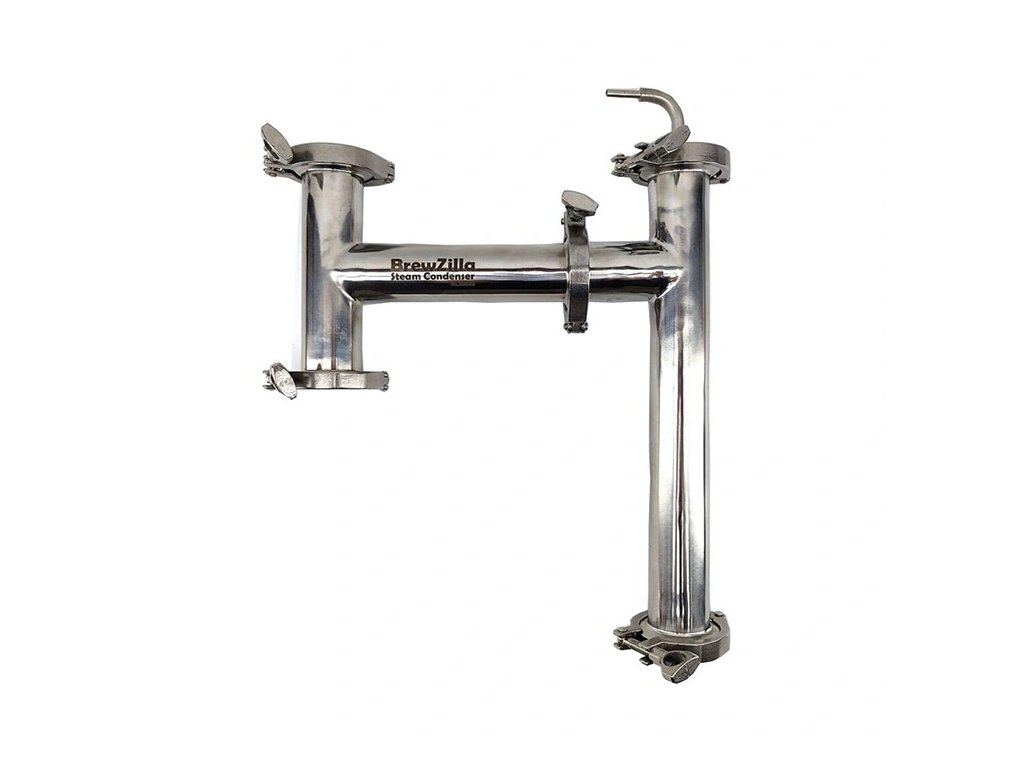

Steam condenser with 64 mm CLAMP connection for All-in-One brew systems for indoor brewing without steam. A professional solution for brewing indoors without steam and condensation. The stainless condenser turns rising steam back into liquid and routes it to a collection vessel—no rangehood required.

• Fits an existing glass/stainless lid with a 2″ Tri-Clover (Tri-Clamp, 64 mm) bulkhead or directly onto a distillation dome with this interface. Lid not included.
• Usable with systems other than BrewZilla/DigiBoil if the lid/dome supports a 2″ TC (64 mm) bulkhead.
• Steam is cooled and drains safely as condensate—just supply cold water.
• Higher energy efficiency: faster to boil and less heat loss.
• Hop additions during the boil: the blanked TC port can be opened to add hops. For convenient dosing, the “Dry Hop Set 64 mm” can be used as a hopper (this is for dosing during the boil, not for dry hopping).

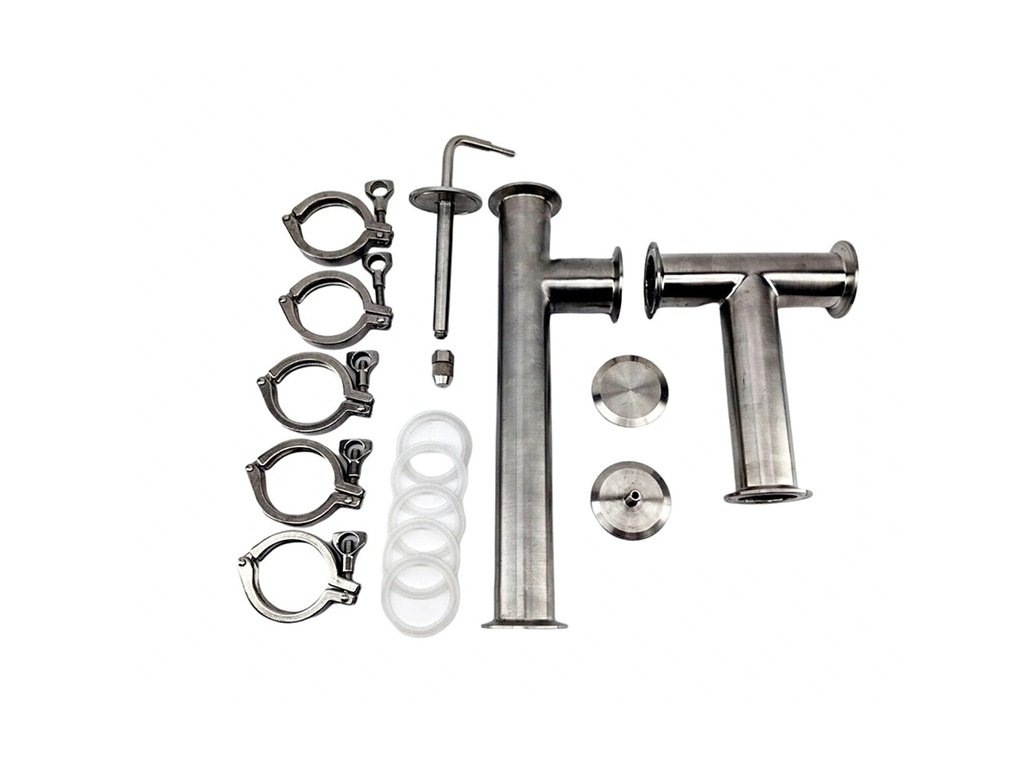

Kit Contents

• 5× 2″ TC (64 mm) clamp
• 5× 2″ TC (64 mm) silicone Double Beaded gasket
• 1× 2″ TC T-piece (64 mm), length ~340 mm
• 1× 2″ TC T-piece (64 mm), width ~200 mm
• 1× 2″ TC (64 mm) end cap
• 1× 2″ TC (64 mm) stainless coupling with spray head (water inlet)
• 1× 2″ TC (64 mm) stainless coupling with 12 mm hose barb (for 10 mm ID silicone)

Specifications

• Material: 304 stainless steel
• Connection: 2″ Tri-Clamp (64 mm)
• Compatibility: BrewZilla/DigiBoil 35 L & 65 L (47 mm lid hole); All-in-One systems with 2″ Tri-Clamp
• Condensing rate: up to ~1.6 L/min (with inlet water pressure ~6.9 bar)
• T-piece lengths: 340 mm and 200 mm
• Condensate outlet: 12 mm (fits 10×15 mm silicone)

Key Benefits

• Indoor brewing without moisture—steam is instantly condensed and drains as water.
• Time & energy savings—faster to boil and steadier boil (less heat loss).
• Simple setup—feed cold water to the spray head (tap or recirculation pump). Route the outlet hose to drain or a container.
• Easy cleaning—modular 2″ TC parts for quick disassembly.
• Coolant water can be captured and reused.

IMPORTANT WARNING

• Keep the condensate outlet open: the hose end must drip freely into an open drain/container.
• Do not fit a valve, restriction, or plug to the outlet and do not submerge the hose end. Any restriction can create back-/vacuum pressure and damage the kettle.
• Check all seals for leaks before the boil.
• Hot steam and condensate can cause burns—use heat-resistant gloves.
• Not intended for pressurised operation.
